HFA500 錨固鉆機
- Drilling Diameter: 50-150mm
- Drilling Depth:500m
- Weight:1680kg
- Rotary Torque:≥6000N.m
product Introduction

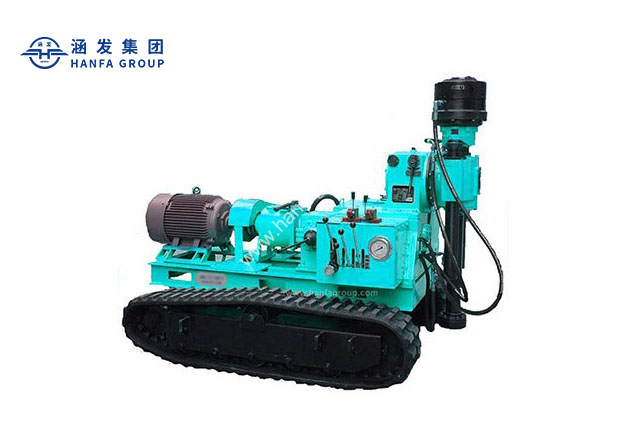

HFA-500 crawler mounted anchor drilling machine is our company’s production of a mechanical drive, hydraulic feed, crawler walking, dedicated to engineering, anchor construction work, applied in water well drilling, the dam grouting, pile foundation engineering drilling hole, also can be used for the surface and tunnel ventilation and drainage engineering construction, diamond drilling and carbide drilling was carried out on the solid deposit.Reserve the installation space of the winder to realize the different needs of engineering and geological drilling. The power system can be equipped with electric motor or diesel engine according to the user's order.
Features
- 1It can satisfy the need of engineering drilling hole drilling and satisfy the need of geological drilling hole drilling.;
- 2The hydraulic drive the crawler is self-propelled, and it is easy to move forward, backward and move on work site.
- 3The speed range is scientific and reasonable, with a range of up to 8 grade, ranging from 64 r/min to 1200 r/m;
- 4Using oil-immersed multi-plate friction clutch, it has the characteristics of overload protection, stable operation, reliable operation, convenient operation, long life, etc.

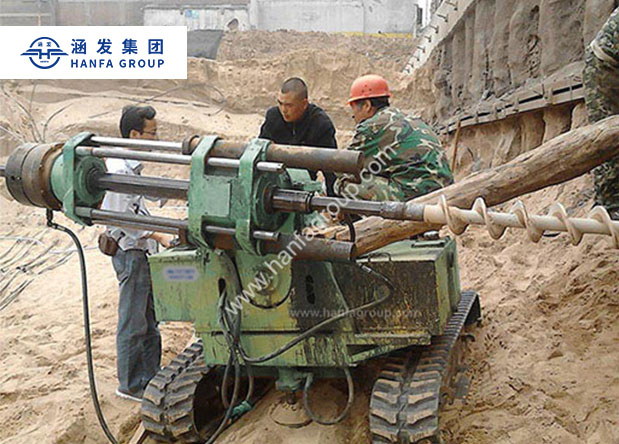

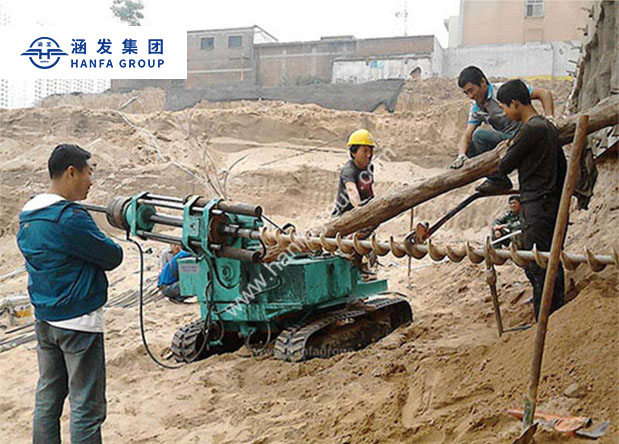

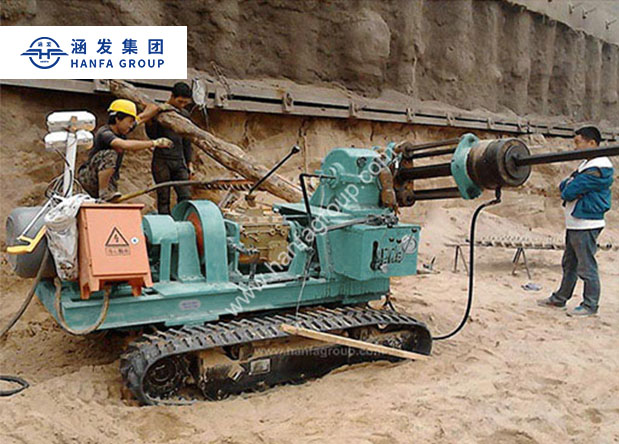

Application
技術參數
| 參數 | 水平鉆孔 | 使用直徑150 mm螺旋鉆桿40米. | ||
| 參考鉆孔深度 | 使用直徑50毫米鉆桿500m | |||
| 鉆孔角度 | 0-360o | |||
| 尺寸（長×寬×高） | 2235×1700×1700mm | |||
| 軌道速度 | 2-3km/h | |||
| 總重量 | 1680kg | |||
| 回轉器 | 電機轉速1470r/min；立軸轉速r/min。 | foreward 64、110、174、271、550、870、1200r/min | ||
| reversal 50、337r/min | ||||
| 主軸行程 | 600mm | |||
| 主軸提升能力 | 60KN | |||
| 主軸最大壓力能力 | 40KN | |||
| 動力系統 | 功率 | 22KN | ||
| 轉速 | 1470r/min | |||
| 齒輪泵 | 型號 | 2BY2050-2TR | ||
| 取代 | 50.32ml/r | |||
| 額定壓力 | 16Mpa | |||
| 額定轉速 | 2000r/min | |||
| 履帶帶 | 額定壓力 | 16Mpa | Rated output speed | 40r/min |
| 最高壓力 | 20Mpa | Max Speed | 60r/min | |
| 爬坡能力 | 30o | retarding torque | ≥6000N.m | |
| 最大牽引力 | 5100N.m | Hydraulic motor model | BM6-800 | |
| 總位移 | 1891ml | displacement | 800ML/r | |
